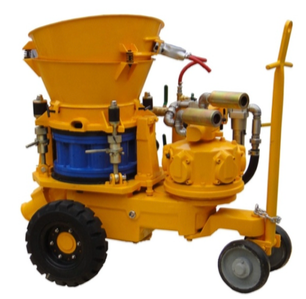

LANZADORA DE CONCRETO

OUTPUT CAPACITY                                                                2.5 - 5.5 m3/h

MAX. HORIZONTAL CONVYING DISTANCE                               200 m

SUITABLE MIX RATIO                                                           ≤1:3≈5

MAX. AGGREGATE SIZE                                                        Φ 15 mm

CONVEYING HOSE INNER DIAMETER                                     Φ 51 mm

CONVEYING PRESSURE                                                        0.2 - 0.4 Mpa

AIR CONSUMPTION FOR CONVEYING MATERIAL                    7 - 8 m3/min

AIR MOTOR AIR PRESSURE                                                  0.5 Mpa

MATERIAL CHARGING HEIGHT                                              1.1 m

ROTOR SPEED                                                                     10 rpm

AIR MOTOR AIR CONSMPTION                                             7.5 m3/min

OVERALL DIMENSION                                                          1.35x0.75x1.2 m

NET WEIGHT                                                                        720 Kg
